Explain: This series collects all kinds of connection forms and structural couplings, nipples, nozzles, rotary couplings, thermowells and other products in the automatic control instrument pipeline system. It is an essential connecting piece in the pipeline with a wide range of varieties, specifications and applications. The union YZG15 series is one of the auxiliary connectors of the automatic control system, which is applicable to various measurement, signal and air source pipelines. Unions are mainly used for long pipelines and pipelines where multiple equipment are installed. The reason for using unions is to facilitate installation and maintenance. Unions are usually used on pipes with small pipe diameters (flange connection is used for large pipe diameters). They are usually used in DN15～40. As a series of products, the pipe diameter is from DN15 to DN70. Usually, the union is not used when DN>50.

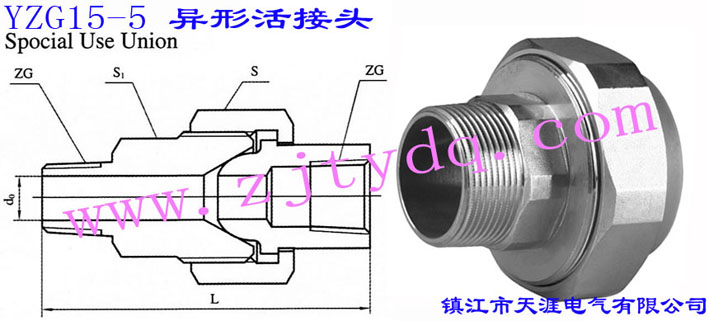

性能規范： □公稱壓力：1.0MPa～3.2MPa □適用溫度：-70℃～+450℃ □制造材料：20#,H62,1Cr18Ni9Ti,316L,0Cr18Ni12Mo2Ti □執行標準：《儀表工手冊》樂嘉謙著 第五篇 儀表安裝>>第三章 儀表加工件>>第一節 儀表接頭 YZG15-5 異形活接頭 YZG15-5 Special Use Union
ZG
d0
S
S1
L
代號Code No.
ZG1/4"
8
27
19
60
YZG15-5-ZG1/4"
ZG3/8"
10
32
22
66
YZG15-5-ZG3/8"
ZG1/2"
15
36
24
71
YZG15-5-ZG1/2"
ZG3/4"
20
46
32
67
YZG15-5-ZG3/4"
ZG1"
25
60
41
80
YZG15-5-ZG1"
ZG1 1/2"
40
75
55
88
YZG15-5-ZG1 1/2"
ZG2"
50
90
65
96
YZG15-5-ZG2"
公稱壓力：PN10Mpa
※注：YZG15-5 異形活接頭Special Use Union如有改進，恕不另行通知，以產品實物為準。
